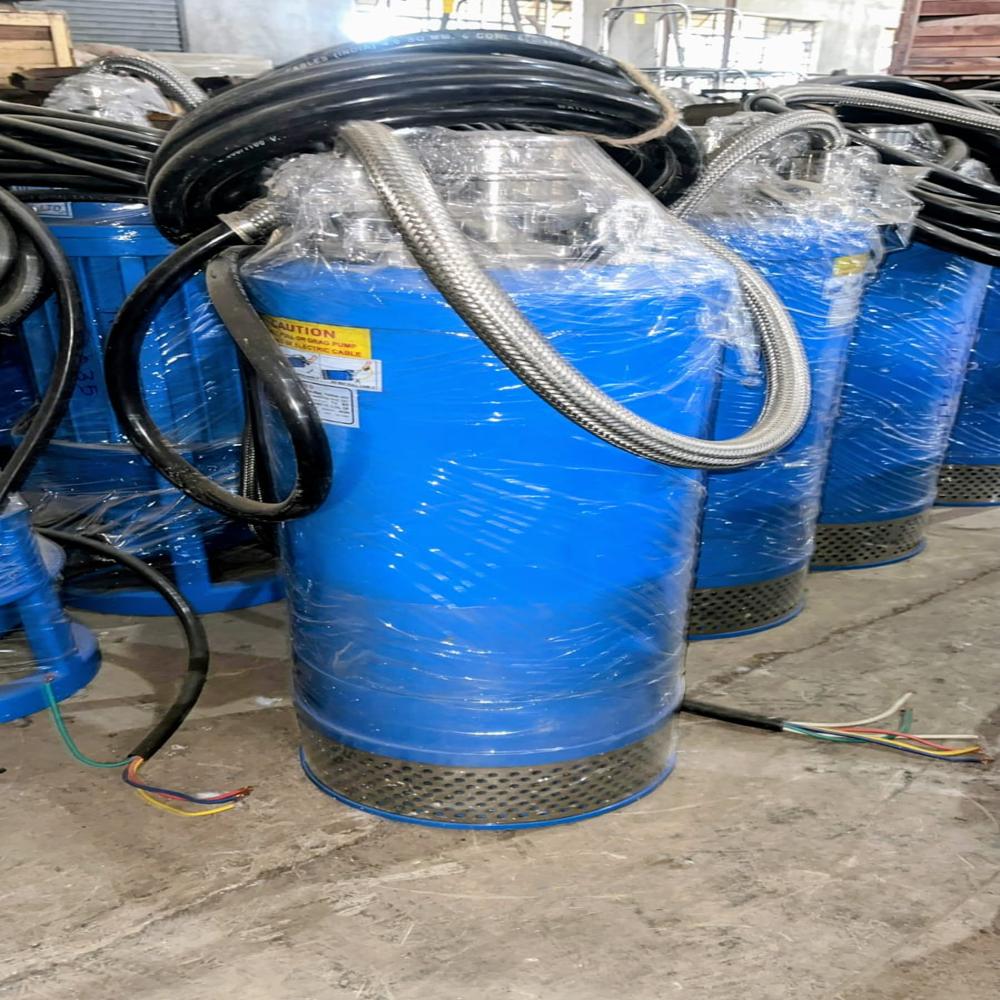

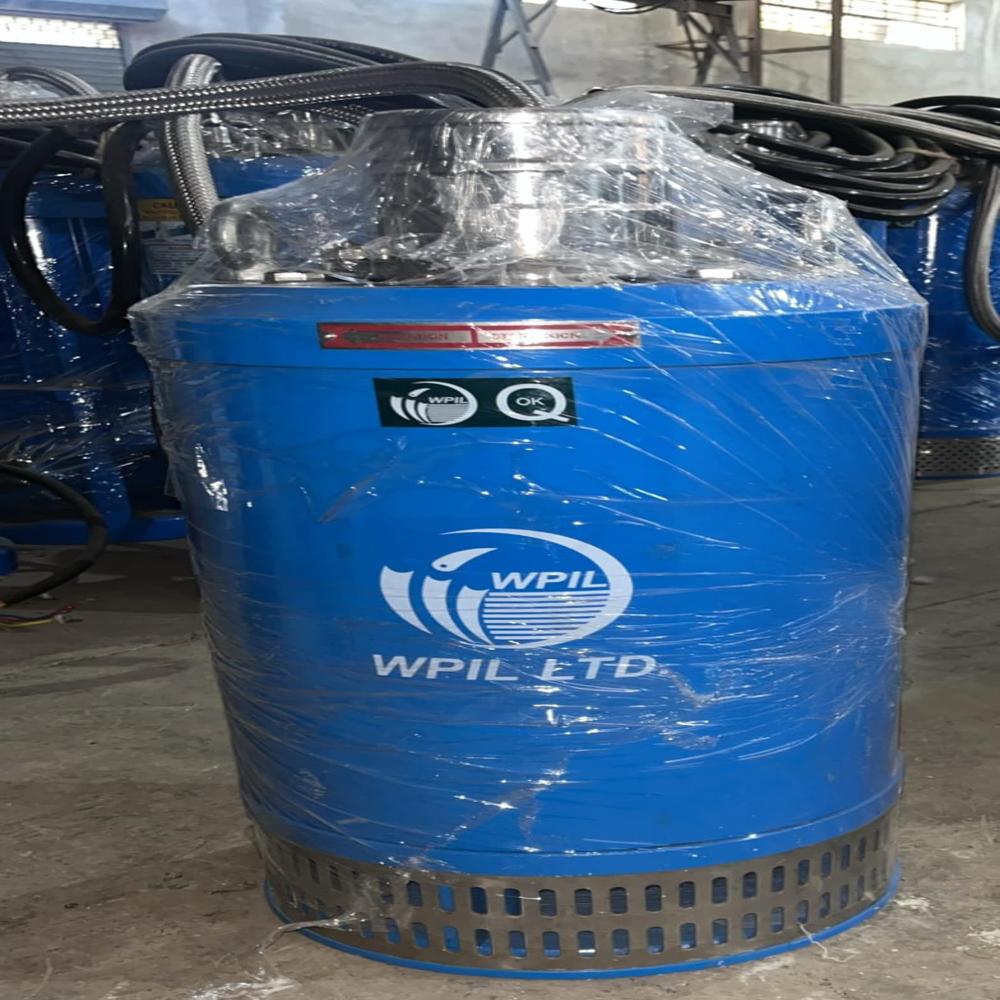

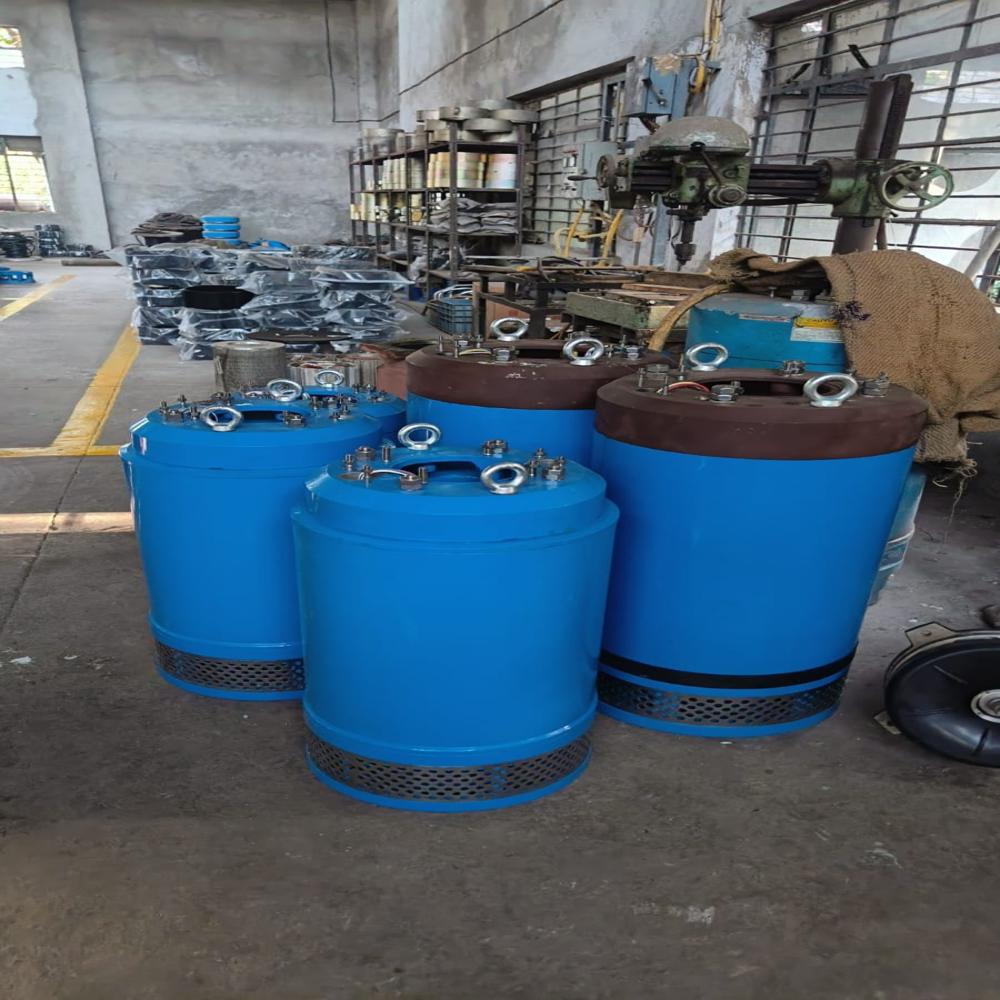

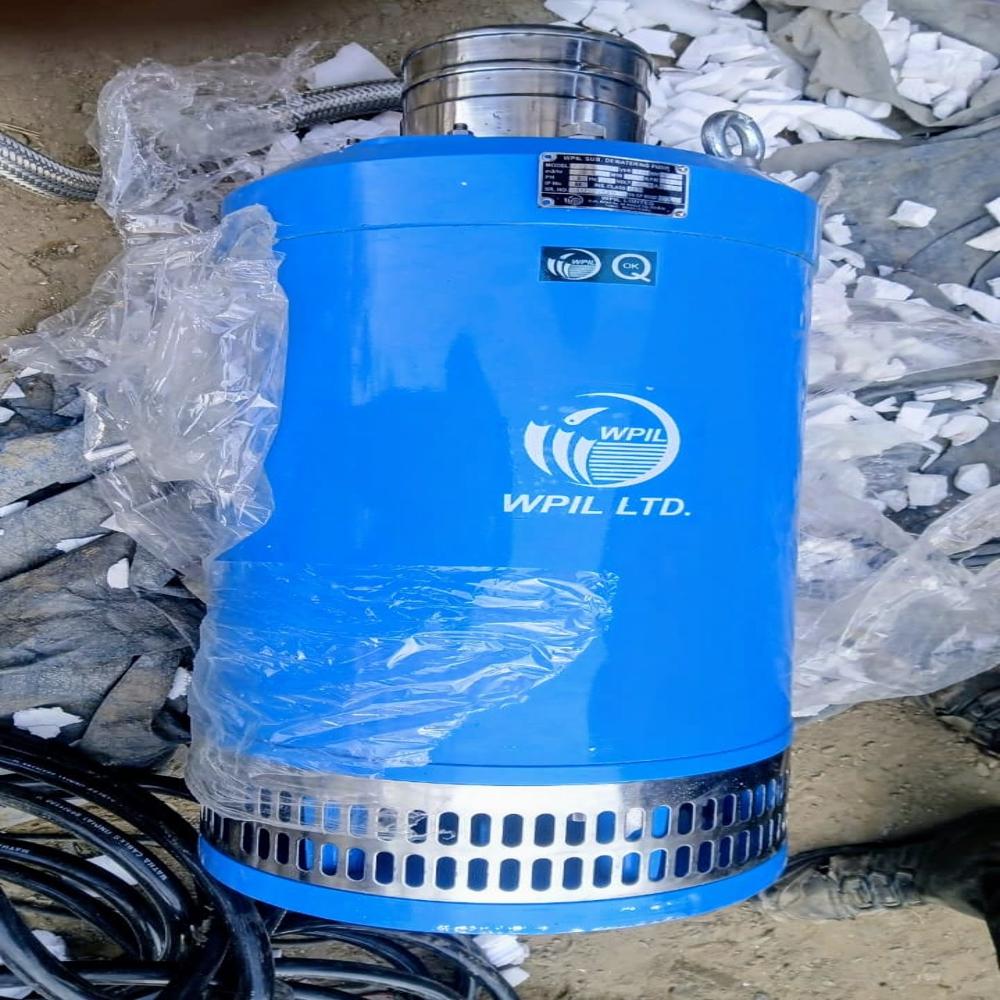

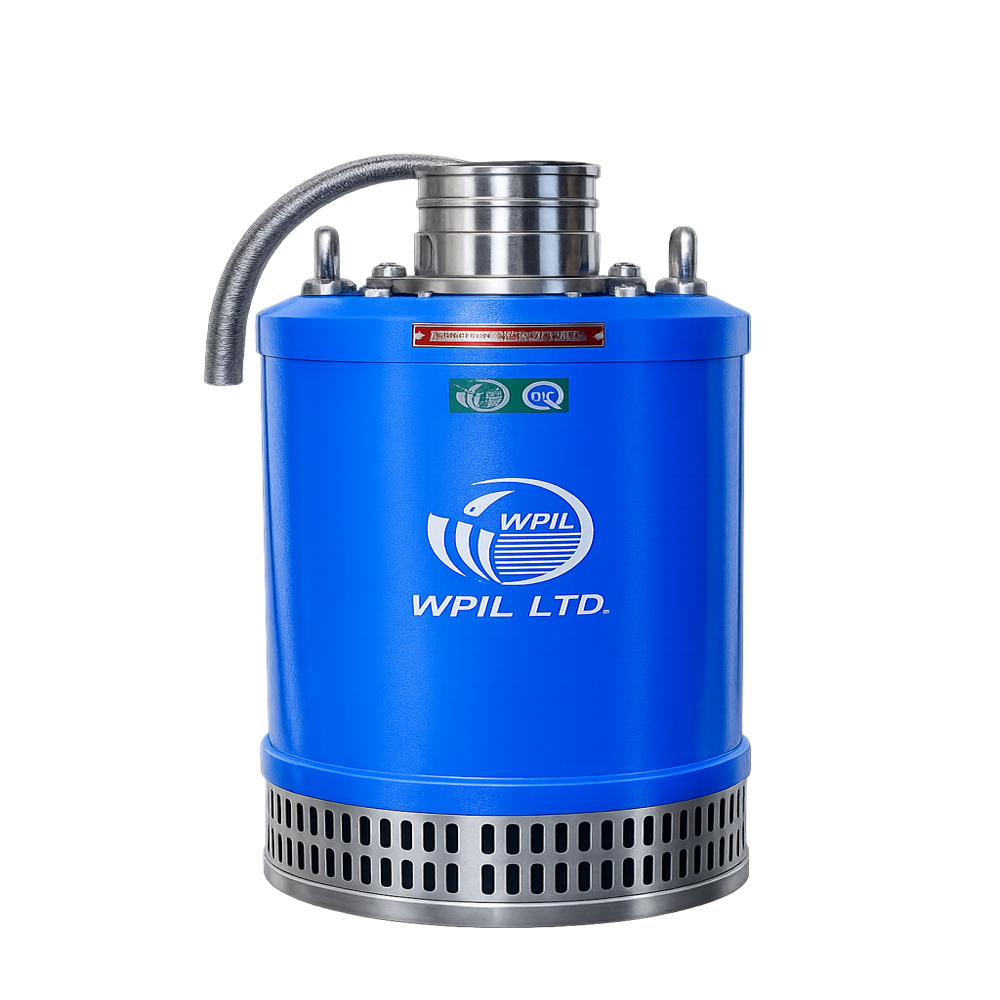

G504T MODY Dewatering pump

Name: G504T MODY Dewatering pump
Brand: R S MANAGEMENT SYSTEMS
Price: 50000.0 INR
Availability: InStock

Price 50000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

G504T MODY Dewatering pump Specification

Warranty
1 year

Type
Centrifugal Pump

Usage
Industrial

Style
Single Stage Pump

Product Type
Submersible Dewatering

Suction Type
Bottom Suction/ Top Discharge

G504T MODY Dewatering pump Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About G504T MODY Dewatering pump

MODY Industries (WPIL) ELECTRIC SUBMERSIBLE DRAINAGE PUMPS- model G504T:

DESIGN ADVANTAGES:

Built in ON/OFF thermal switches to protect the motor.
Motor is with dry winding type , leading to

a) Better Efficiency /lower Power consumption

b) Lightweight /compact design giving better portability

c) Better temperature rise characteristics

Centrifugal cast outer casing giving superior aesthetic/high tensile strength.
Pump can be operated in fully or partially submerged conditions.
Twin seals in tandem of TC/TC in wholly enclosed pressure compensated oilchamberleadingtolongerseal life.
FieldadjustableNitrilerubberlinedDiffusor/Wear Plate to optimise the efficiency throughout the life of pump.
410 Stainless steel shaft, CF8 Impeller & SS304 hardware for maximum corrosion resistance.
Can be offered with sacrificial Zinc anodes for maximum life ina salinefluidenvironmentaswellasin-built non return valve or water level controller (Optional).
Pump is painted with Epoxy coating with surface treatment for longer Life.
Aluminium parts undergoes cromotising followed by epoxy powder coating for full protection.

The pumps are portable & are intended to be used for pumping of water from :

Construction sites Open sumps
Trenches Tunnels
Shipyards & ships Mines
Power stations Fire fighting
Public Utility works Aquaculture
Flooded Cellar Water supply

The Pump can be supplied in Complete Stainless Steel Grade SS316/CF8M or in Duplex Material ( Except for Elastomers and / Inner parts ) against order.

Efficient Dewatering for Industrial Demands

The G504T MODY Dewatering Pump addresses the urgent need for efficient water removal in challenging industrial settings. Its centrifugal design and single-stage structure enable swift, reliable dewatering, whether at construction sites or mining operations. The combination of bottom suction and top discharge maximizes water extraction, providing consistent results even under continuous use.

Trusted Quality from Leading Indian Manufacturer

Manufactured, exported, and supplied by one of India's prominent pump makers, the G504T MODY Dewatering Pump stands as a testament to engineering excellence. Rigorous quality control and robust construction ensure durability and dependability, supported by a one-year warranty for added confidence in your purchase.

FAQ's of G504T MODY Dewatering pump:

Q: How does the G504T MODY Dewatering Pump operate?

A: The G504T MODY Dewatering Pump functions as a centrifugal, single-stage unit that draws water from the bottom and discharges it through the top, making it efficient for rapid water removal in industrial settings.

Q: What are the ideal applications for this dewatering pump?

A: This pump is designed for industrial use, including construction sites, mining areas, and other locations requiring swift and reliable dewatering of accumulated water.

Q: When should I consider using a bottom suction, top discharge dewatering pump?

A: A bottom suction, top discharge pump like the G504T MODY is best used when you need to remove water from low levels or submerged locations, ensuring maximum water intake and efficient discharge.

Q: Where is the G504T MODY Dewatering Pump manufactured and available for supply?

A: The G504T MODY Dewatering Pump is manufactured, exported, and supplied by a reputable company based in India, serving clients both domestically and internationally.

Q: What is the process for installing this pump in an industrial setting?

A: Installation involves securing the pump at the required site, connecting it to a power source, and attaching appropriate hoses or piping for suction and discharge. Professional installation is recommended for optimal performance.

Q: How can users benefit from the one-year warranty offered?

A: The included one-year warranty provides users with assurance against manufacturing defects, allowing for repairs or replacements within this period, thereby reducing downtime and maintenance costs.
