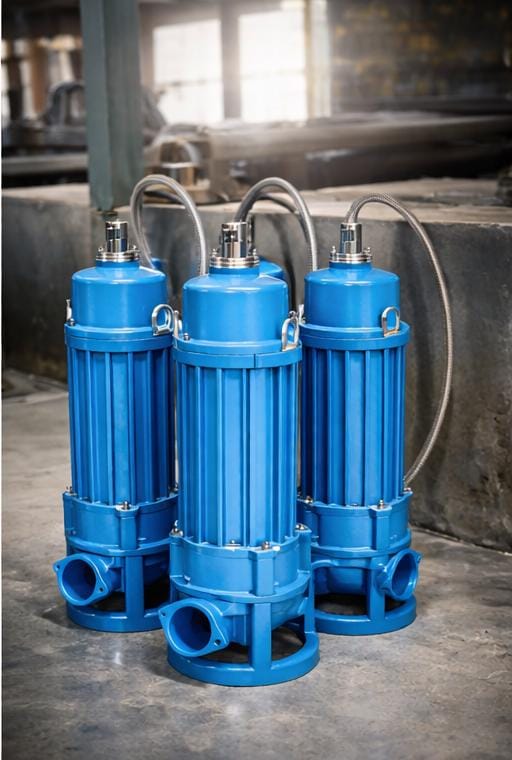

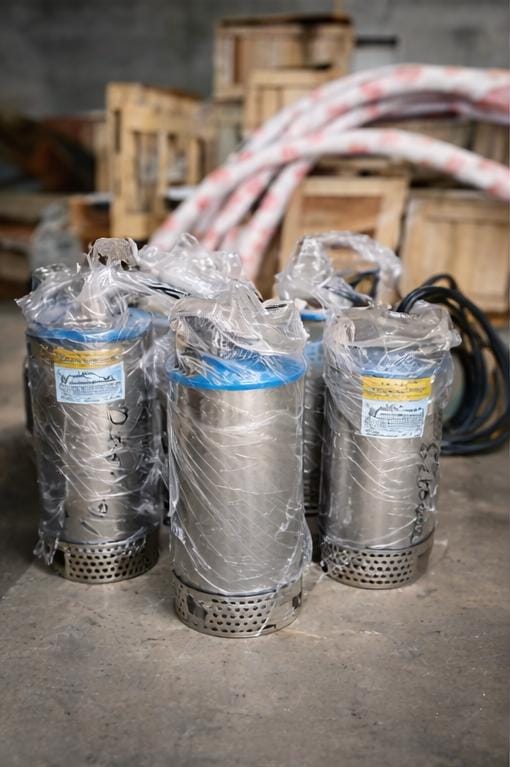

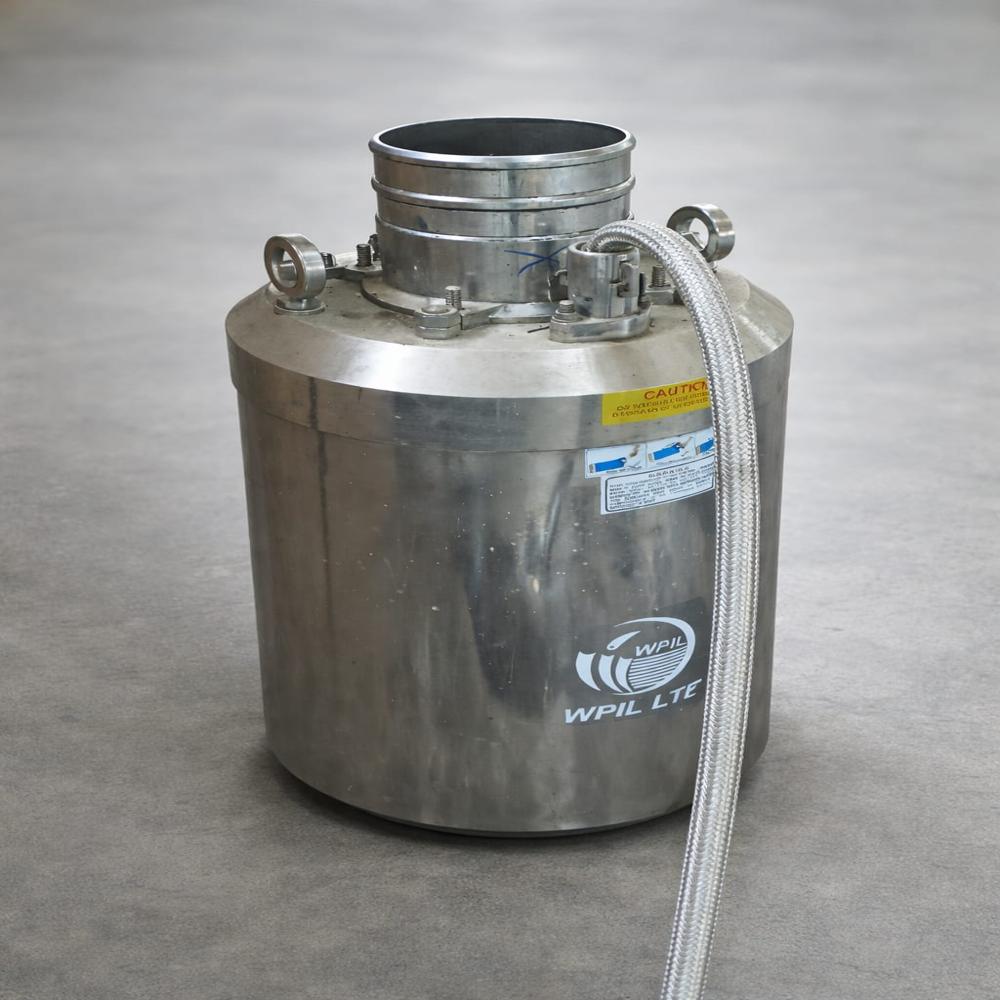

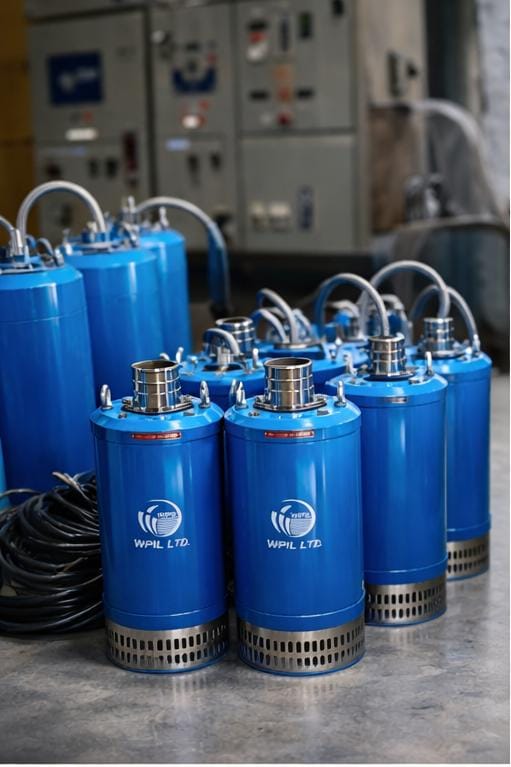

MODY Sewage Pump

Name: MODY Sewage Pump
Brand: R S MANAGEMENT SYSTEMS
Price: 121999.0 INR
Availability: InStock

Price 121999.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MODY Sewage Pump Specification

Impellars Type
Non-clog Impeller

Motor
Integrated Submersible Motor

Material
Cast Iron

Structure
Single-stage Pump

Type
Sewage Pump

Usage
Industrial applications

Style
Single Stage Pump

Power
2 HP to 10 HP

Product Type
Submersible Sewage Pump

Fuel Type
Electric

Pressure
High Pressure

Application
Sewage

Suction Type
Bottom Suction

Seals Type
Mechanical Seal

Priming
Self-Priming

Protection
IP68 Rated

Cable Length
10 meters standard

Installation
Portable/Stationary

Solid Handling Capacity
Up to 50 mm

Voltage
220V/415V AC, 50Hz

Cooling Method
Water Cooled

Flow Rate
Up to 600 LPM

Duty Cycle
Continuous Duty

Max Head
24 meters

Discharge Size
50 mm to 100 mm

MODY Sewage Pump Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About MODY Sewage Pump

MODY Industries WPIL Limited, having strong global presence across complete spectrum of water, was established in 1952 and has dedicated itself to the development of a complete range of pumps and water handling systems.

Basic Features:

Energy Efficiency : High efficiency motor, hydraulics, low friction bearings - reduced power loss.
Custom built designs :
Pump hydraulics - vortex impeller,cutters,dredgers.
Motor - To suit VSD/other starting.
Robustness and durability : Heavy and rigid stainless steel shaft, high LTO heavy duty bearings vibration free operation. Higher thickness pressure castings.
Safety and monitoring features : Thermal, vibration and moisture controls and monitoring with internal and external cooling.
Serviceability : Modular designs - lower spare parts inventory. External inspection parts - quick and easy evaluation during service
Wear Resistance : Stainless steel impeller, shaft and hardware, adjustable wear parts - long life and high efficiency.
Choke free : MN/MF range with state of the art wastewater solids handling.
Reliability : Maximum durability with Double mechanical seals. Double cable entry-seal system - no moisture entry.
Dry Running ability : Designed for 50 C dry running.
Effortless starting : High starting torque - easy starting against heavy solids.

Custom Built Protection systems are provided :

Moisture switch in connection chamber,motor body and seal-housing Thermister/ bimetallic switch in winding
Pt100RTD in winding
Pt100RTD in bearings
Leakage Float switch in oil chamber
Vibration sensor in motor/pump
Reverse rotation switch
Humidity sensor
Inbuilt contractor
Pump memory unit

Technical Specification

Single stage, single suction pumps with overhung non-clogging impeller with stationary as well as portable arrangements -

Mounted on bottom pedestal.
Duck foot-bend with rubbering's joint for waterproofing.

SPECIAL FEATURES

Cutter / Agitator arrangement at suction to agitate the liquid.
Semi-open impellers with specially designed wear plate for cutting and tearing of soft,long, fibrous material.
Custom built for dry pit application.

MATERIALS OF CONSTRUCTION:

Grey cast iron
Bronze sand other Cu Nickel alloys
Steel and Stainless steel
Duplex and super duplex stainless steels
Other materials as per applications
PVC insulated/sheathed cables or Rubber insulated and steel meshed cables

SUITABLE FOR LARGE SOLIDS HANDLING AND RAW WATER HANDLING

Sizes : 50 mm to 750 mm (delivery)
Head : Up to 140 mtrs.
Capacity : Up to 11000 cum/hr.
Solid handling upto 12 inch.

APPLICATIONS:

Screened Sewage
Contaminated Effluents
Stormwater
Dry and wet Pit
Drain water, Mine water
Raw Sewage
Raw water Intake
Industrial wastewater
Trench & Tunnel water
Waste water with solids

Reliable Solution for Industrial Sewage Management

The MODY Sewage Pump delivers exceptional reliability in managing industrial wastewater and sewage. Its robust build and high solid handling capacity make it a go-to choice for demanding environments. Designed to operate efficiently across a range of 2 HP to 10 HP, it meets the diverse needs of industrial and municipal users. With its IP68 rating and durable cast iron construction, the pump ensures lasting performance and low maintenance.

Advanced Engineering for Superior Performance

Featuring a single-stage, non-clog impeller and a water-cooled, integrated submersible motor, the MODY Sewage Pump excels in handling solids and viscous fluids. Its mechanical seals safeguard internal components, while bottom suction ensures minimal clogging. These design features enable efficient and uninterrupted operation, even in challenging sewage environments.

FAQ's of MODY Sewage Pump:

Q: How does the MODY Sewage Pump handle large solids and prevent clogging?

A: The MODY Sewage Pump uses a non-clog impeller and has a solid handling capacity of up to 50 mm, allowing it to effectively process large solids and minimize the risk of clogging during sewage transfer.

Q: What are the installation options for the MODY Sewage Pump?

A: This pump supports both portable and stationary installations, making it versatile for different site requirements. Its 10-meter standard cable and compact, submersible design simplify deployment in varied industrial and municipal settings.

Q: When should I use a MODY Sewage Pump?

A: You should use the MODY Sewage Pump for continuous duty sewage transfer in industrial environments, especially where high flow rates, solid handling, and reliability are critical. It is suitable for both planned and emergency sewage management situations.

Q: Where can the MODY Sewage Pump be used optimally?

A: The pump is ideal for industrial plants, wastewater treatment facilities, municipal sewage networks, and construction dewatering sites, operating efficiently wherever robust sewage handling is needed.

Q: What process does the MODY Sewage Pump utilize for efficient operation?

A: It features bottom suction for efficient intake, water-cooled motor for prolonged operation, and self-priming capability to ensure immediate, reliable pumping without manual priming.

Q: What are the primary benefits of choosing the MODY Sewage Pump?

A: Key benefits include high solid handling, continuous duty, low maintenance needs, durability due to cast iron build, and efficient performance even under high pressure. Its IP68 protection guarantees safe submersible operation.
