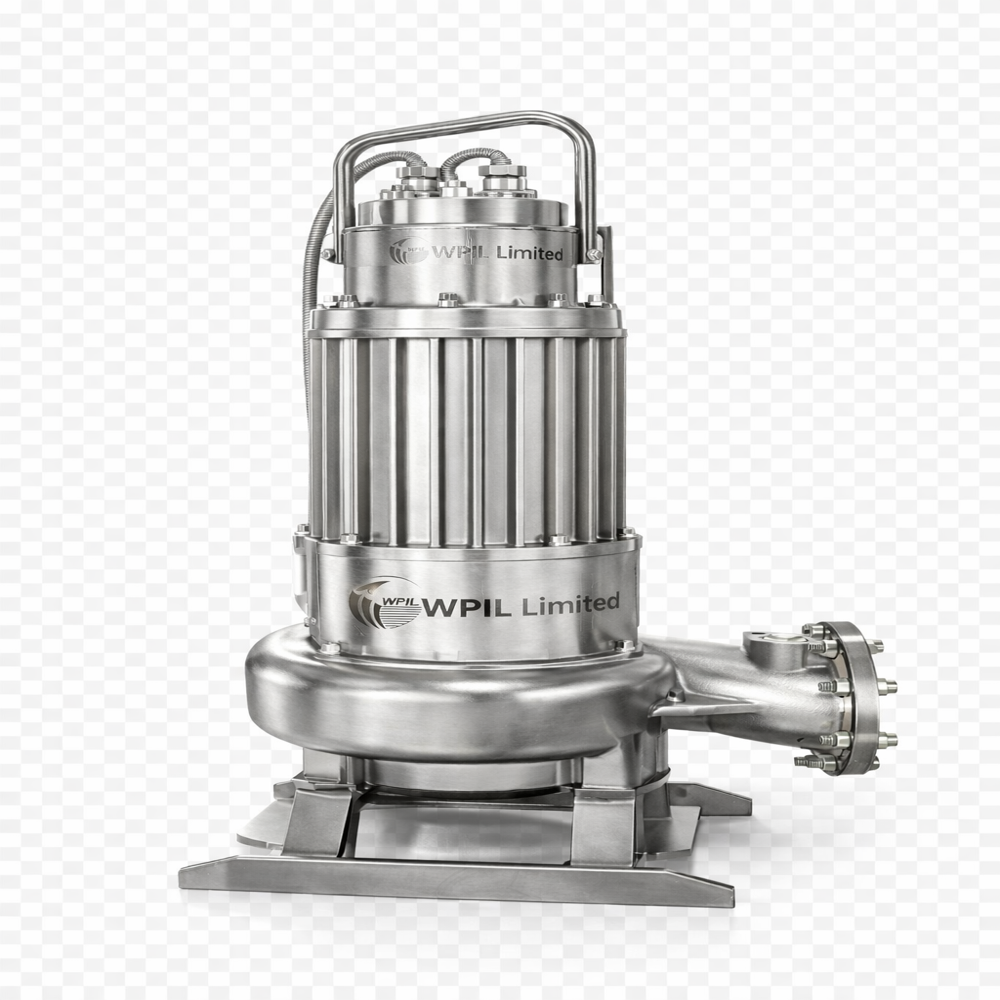

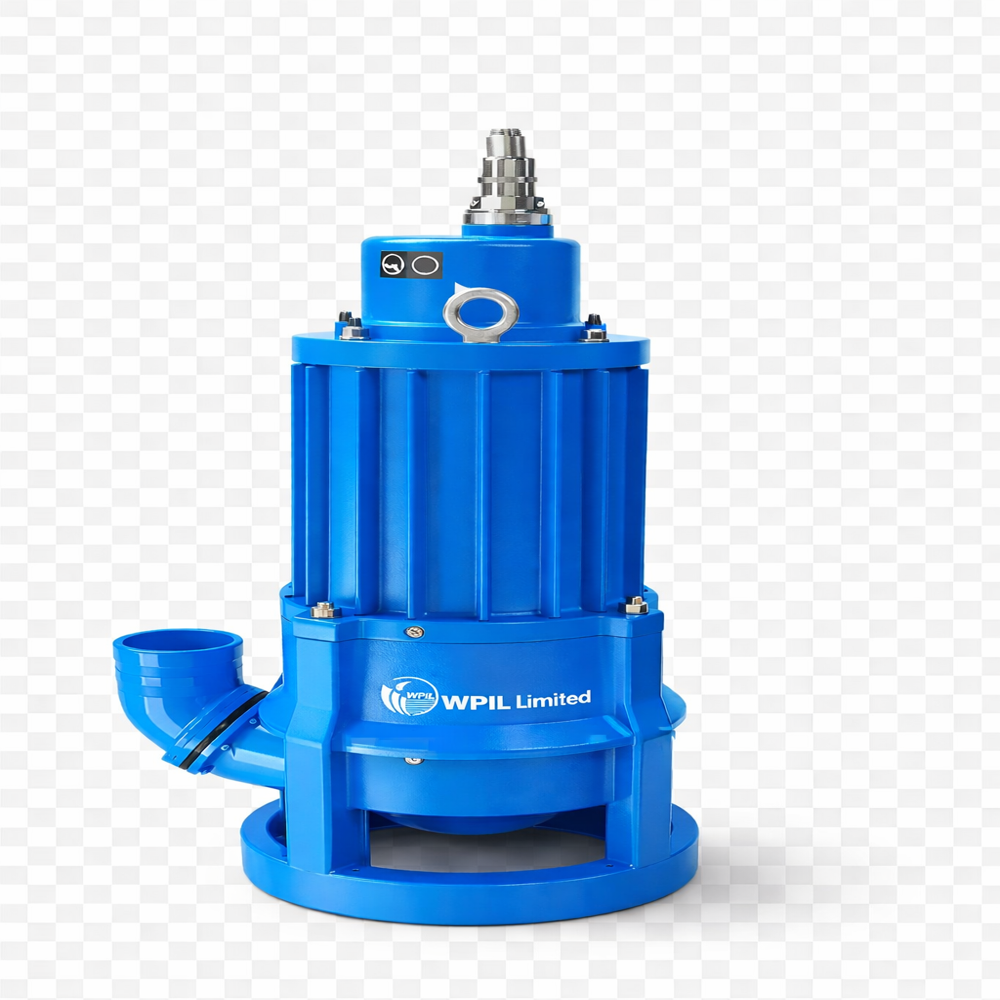

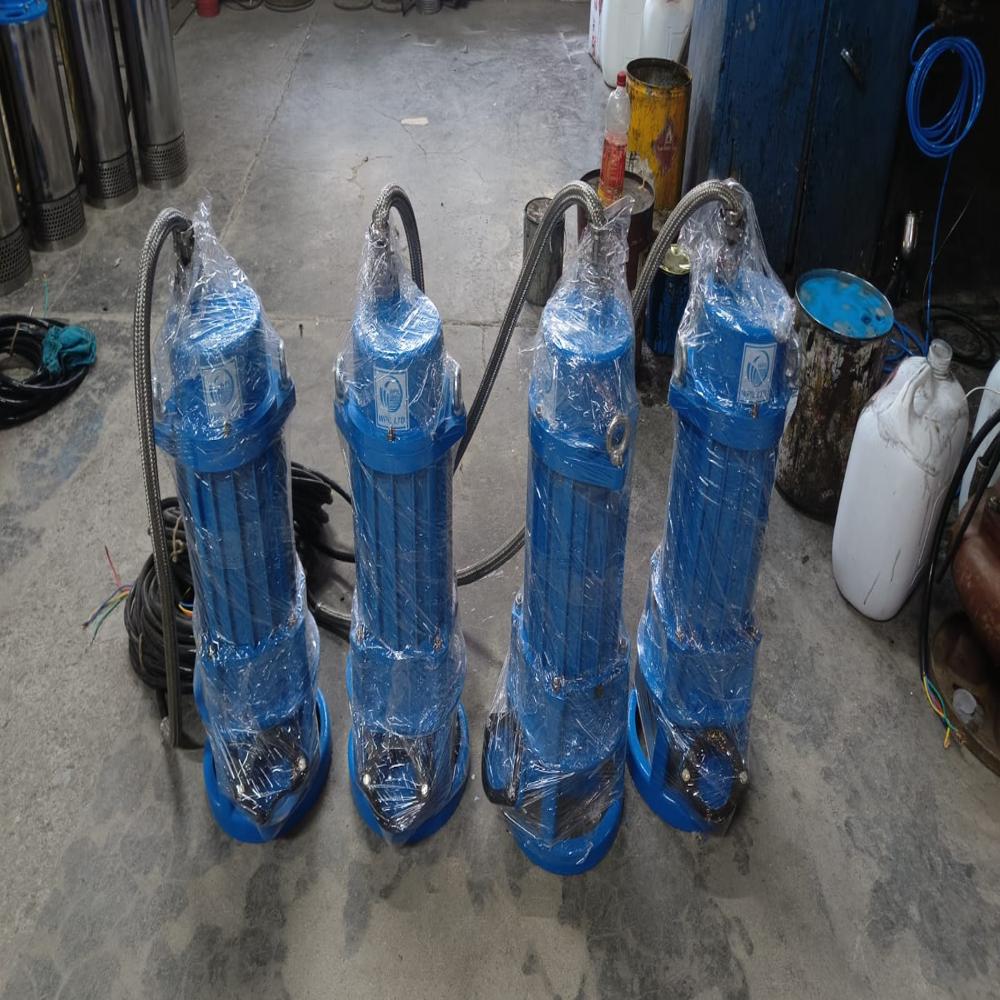

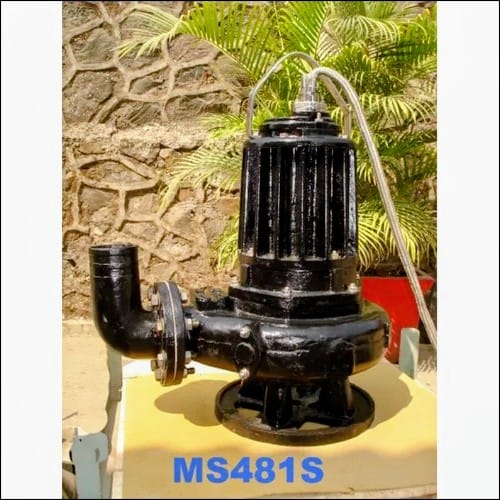

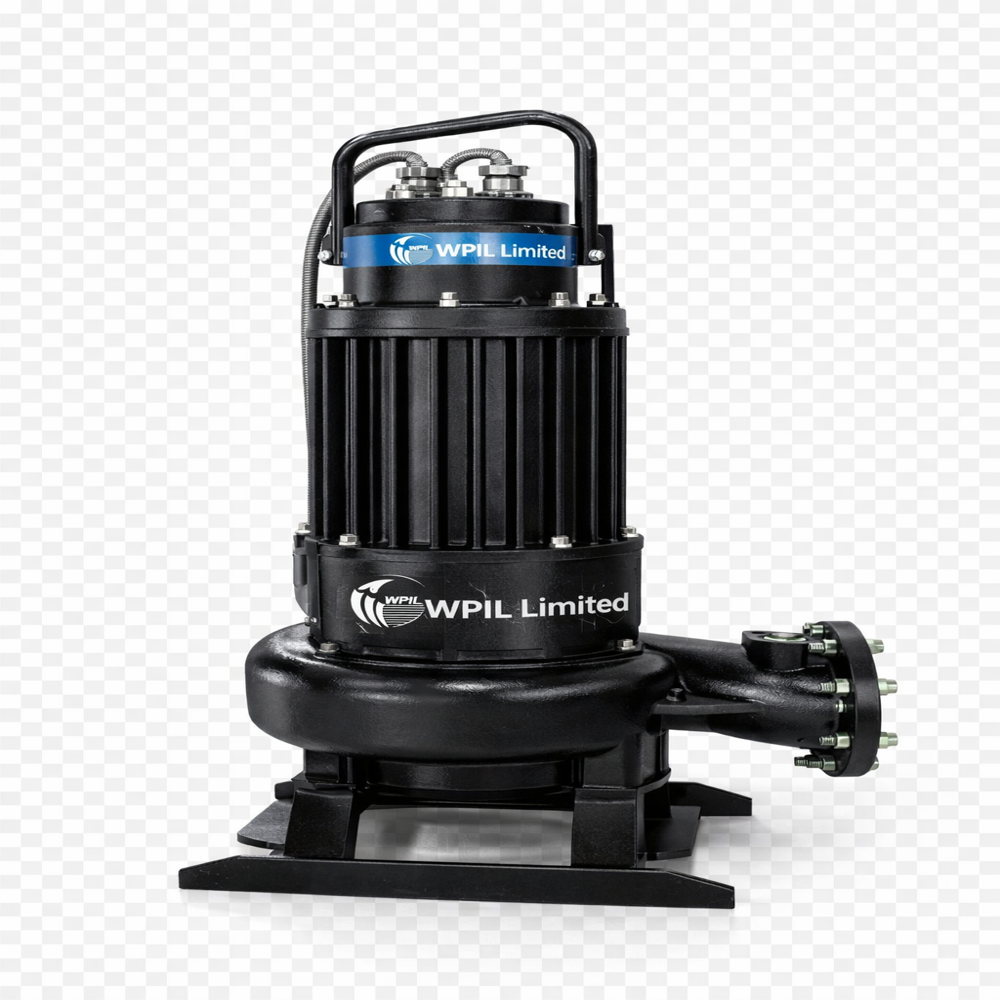

Name: MODY Sewage Pump (WPIL)
Brand: R S MANAGEMENT SYSTEMS
Price: 79996.0 INR
Availability: InStock

Price 79996.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MODY Sewage Pump (WPIL) Specification

Warranty
1 year

Type
Vortex Pump

Usage
Industrial

Style
Single Stage Pump

Size
Box

Height
15 Centimeter (cm)

Standard
Standard

Product Type
Vertical Submersible Sewage

Weight
110 Kilograms (kg)

Application
Sewage

Color
Black

Width
35 Centimeter (cm)

Length
15 Centimeter (cm)

Suction Type
Bottom Suction/ Side Discharge

MODY Sewage Pump (WPIL) Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About MODY Sewage Pump (WPIL)

MODY Industries WPIL Limited, having strong global presence across complete spectrum of water, was established in 1952 and has dedicated itself to the development of a complete range of pumps and water handling systems.

Basic Features:

Energy Efficiency : High efficiency motor, hydraulics, low friction bearings - reduced power loss.
Custom built designs :
Pump hydraulics - vortex impeller,cutters,dredgers.
Motor - To suit VSD/other starting.
Robustness and durability : Heavy and rigid stainless steel shaft, high LTO heavy duty bearings vibration free operation. Higher thickness pressure castings.
Safety and monitoring features : Thermal, vibration and moisture controls and monitoring with internal and external cooling.
Serviceability : Modular designs - lower spare parts inventory. External inspection parts - quick and easy evaluation during service
Wear Resistance : Stainless steel impeller, shaft and hardware, adjustable wear parts - long life and high efficiency.
Choke free : MN/MF range with state of the art wastewater solids handling.
Reliability : Maximum durability with Double mechanical seals. Double cable entry-seal system - no moisture entry.
Dry Running ability : Designed for 50 C dry running.
Effortless starting : High starting torque - easy starting against heavy solids.

Custom Built Protection systems are provided :

Moisture switch in connection chamber,motor body and seal-housing Thermister/ bimetallic switch in winding
Pt100RTD in winding
Pt100RTD in bearings
Leakage Float switch in oil chamber
Vibration sensor in motor/pump
Reverse rotation switch
Humidity sensor
Inbuilt contractor
Pump memory unit

Technical Specification

Single stage, single suction pumps with overhung non-clogging impeller with stationary as well as portable arrangements -

Mounted on bottom pedestal.
Duck foot-bend with rubbering's joint for waterproofing.

SPECIAL FEATURES

Cutter / Agitator arrangement at suction to agitate the liquid.
Semi-open impellers with specially designed wear plate for cutting and tearing of soft,long, fibrous material.
Custom built for dry pit application.

MATERIALS OF CONSTRUCTION:

Grey cast iron
Bronze sand other Cu Nickel alloys
Steel and Stainless steel
Duplex and super duplex stainless steels
Other materials as per applications
PVC insulated/sheathed cables or Rubber insulated and steel meshed cables

SUITABLE FOR LARGE SOLIDS HANDLING AND RAW WATER HANDLING

Sizes : 50 mm to 750 mm (delivery)
Head : Up to 140 mtrs.
Capacity : Up to 11000 cum/hr.
Solid handling upto 12 inch.

APPLICATIONS:

Screened Sewage
Contaminated Effluents
Stormwater
Dry and wet Pit
Drain water, Mine water
Raw Sewage
Raw water Intake
Industrial wastewater
Trench & Tunnel water
Waste water with solids

Efficient Industrial Sewage Handling

Engineered for rigorous industrial use, the MODY Sewage Pump is specifically developed to manage challenging sewage tasks. Its vortex-type mechanism ensures smooth operation, while the single-stage configuration provides efficient sewage transfer with minimal blockages. Built with a durable design and highly reliable components, it offers consistent performance even in demanding environments.

Versatile and Robust Design

The pump features a versatile bottom suction and side discharge layout, allowing for flexible installation in diverse industrial settings. With its compact 35 x 15 x 15 cm dimensions, the pump can fit into confined spaces without compromising performance. Its sturdy 110 kg construction, standard specifications, and protective black finish contribute to long service life and resilience under heavy-duty conditions.

FAQ's of MODY Sewage Pump (WPIL):

Q: How should the MODY Sewage Pump (WPIL) be installed for optimal performance?

A: Install the pump in an upright position with clear access to the bottom suction and side discharge points. Ensure it is securely positioned on a stable surface and properly connected to existing industrial sewage lines for safe and efficient operation.

Q: What is the warranty coverage for the MODY Sewage Pump?

A: The pump comes with a 1-year manufacturer's warranty, covering defects in materials or workmanship under normal industrial usage.

Q: When is it recommended to use the MODY Sewage Pump?

A: This pump is ideal for continuous or regular industrial sewage management tasks, particularly where reliable and efficient removal of wastewater is required.

Q: Where can the MODY Sewage Pump be used effectively?

A: It is suitable for installation in a variety of industrial facilities, treatment plants, and environments where robust sewage handling is essential.

Q: What is the process for maintaining this sewage pump?

A: Regularly inspect suction and discharge areas for debris, check all connections, and schedule periodic servicing as per the manufacturer's guidelines to maintain optimal performance and extend service life.

Q: How does the MODY Sewage Pump benefit industrial users?

A: With its powerful vortex mechanism, sturdy build, and low maintenance requirements, the pump ensures continuous, clog-free sewage transfer, minimizing disruption and operational downtime.
