MODY Submersible Sewage Pump

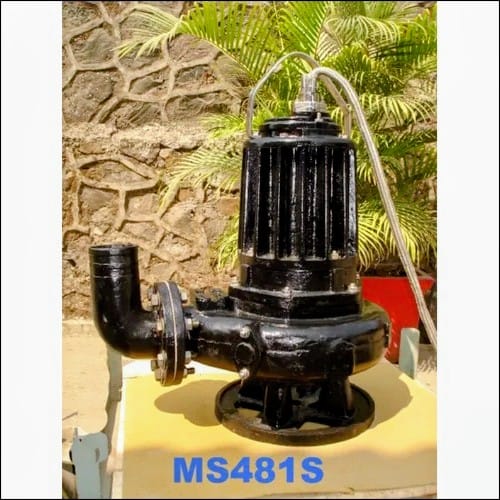

Name: MODY Submersible Sewage Pump
Brand: R S MANAGEMENT SYSTEMS
Price: 2000.0 INR
Availability: InStock

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MODY Submersible Sewage Pump Specification

Warranty
1 Year

Type
Centrifugal Pump

Usage
Industrial

Style
Single Stage Pump

Product Type
Vertical Submersible

Application
Sewage

Color
Black

Suction Type
Bottom Suction/ Side Discharge

MODY Submersible Sewage Pump Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About MODY Submersible Sewage Pump

MODY Industries WPIL Limited, having strong global presence across complete spectrum of water, was established in 1952 and has dedicated itself to the development of a complete range of pumps and water handling systems.

Basic Features:

Energy Efficiency : High efficiency motor, hydraulics, low friction bearings - reduced power loss.
Custom built designs :
Pump hydraulics - vortex impeller,cutters,dredgers.
Motor - To suit VSD/other starting.
Robustness and durability : Heavy and rigid stainless steel shaft, high LTO heavy duty bearings vibration free operation. Higher thickness pressure castings.
Safety and monitoring features : Thermal, vibration and moisture controls and monitoring with internal and external cooling.
Serviceability : Modular designs - lower spare parts inventory. External inspection parts - quick and easy evaluation during service
Wear Resistance : Stainless steel impeller, shaft and hardware, adjustable wear parts - long life and high efficiency.
Choke free : MN/MF range with state of the art wastewater solids handling.
Reliability : Maximum durability with Double mechanical seals. Double cable entry-seal system - no moisture entry.
Dry Running ability : Designed for 50 C dry running.
Effortless starting : High starting torque - easy starting against heavy solids.

Custom Built Protection systems are provided :

Moisture switch in connection chamber,motor body and seal-housing Thermister/ bimetallic switch in winding
Pt100RTD in winding
Pt100RTD in bearings
Leakage Float switch in oil chamber
Vibration sensor in motor/pump
Reverse rotation switch
Humidity sensor
Inbuilt contractor
Pump memory unit

Technical Specification

Single stage, single suction pumps with overhung non-clogging impeller with stationary as well as portable arrangements -

Mounted on bottom pedestal.
Duck foot-bend with rubbering's joint for waterproofing.

SPECIAL FEATURES

Cutter / Agitator arrangement at suction to agitate the liquid.
Semi-open impellers with specially designed wear plate for cutting and tearing of soft,long, fibrous material.
Custom built for dry pit application.

MATERIALS OF CONSTRUCTION:

Grey cast iron
Bronze sand other Cu Nickel alloys
Steel and Stainless steel
Duplex and super duplex stainless steels
Other materials as per applications
PVC insulated/sheathed cables or Rubber insulated and steel meshed cables

SUITABLE FOR LARGE SOLIDS HANDLING AND RAW WATER HANDLING

Sizes : 50 mm to 750 mm (delivery)
Head : Up to 140 mtrs.
Capacity : Up to 11000 cum/hr.
Solid handling upto 12 inch.

APPLICATIONS:

Screened Sewage
Contaminated Effluents
Stormwater
Dry and wet Pit
Drain water, Mine water
Raw Sewage
Raw water Intake
Industrial wastewater
Trench & Tunnel water
Waste water with solids

Efficient Sewage Handling for Industrial Applications

Designed specifically for industrial sewage management, the MODY Submersible Sewage Pump combines powerful performance with efficient operation. Its single-stage, centrifugal mechanism and bottom suction/side discharge setup ensure effective handling of large volumes with minimal interruption. This pump is ideal for facilities requiring reliable, long-lasting sewage solutions.

Durability and Easy Installation

Crafted from high-quality materials and finished in black, this pump offers durability even in challenging environments. The bottom suction design facilitates easy installation and optimal performance in varied application areas. MODY's commitment to manufacturing excellence provides added value for customers seeking dependable, maintenance-friendly solutions.

FAQ's of MODY Submersible Sewage Pump:

Q: How does the MODY Submersible Sewage Pump operate in industrial sewage applications?

A: The MODY pump uses a centrifugal, single-stage mechanism to move sewage efficiently from the collection point through its bottom suction and side discharge design, making it suitable for heavy-duty industrial operations.

Q: What are the main benefits of choosing a bottom suction/side discharge pump for sewage management?

A: A bottom suction with side discharge design enables the pump to handle solid-laden sewage more effectively, reduces clogging, and enhances debris removal, ensuring continuous operation with less downtime.

Q: When should I consider using this submersible sewage pump in my facility?

A: You should use this pump when your operation requires efficient and reliable removal of sewage or wastewater, especially in industrial environments where large volumes and robust performance are needed.

Q: Where can MODY Submersible Sewage Pumps be installed?

A: These pumps are ideally installed in industrial sewage pits, wastewater collection tanks, or similar sites that demand submersible operation for safe and effective sewage transfer.

Q: What steps are involved in installing the MODY Submersible Sewage Pump?

A: To install, position the pump at the bottom of the sewage pit, connect it to the discharge pipe, secure all fittings, and check the electrical connections for safe submerged operation. Always follow the manufacturer's guidelines for optimal performance.

Q: How does using a MODY Submersible Sewage Pump benefit industrial operations?

A: This pump ensures uninterrupted sewage handling, reduces maintenance frequency due to its sturdy construction, and optimizes waste management processes, resulting in greater operational efficiency and reduced downtime.
